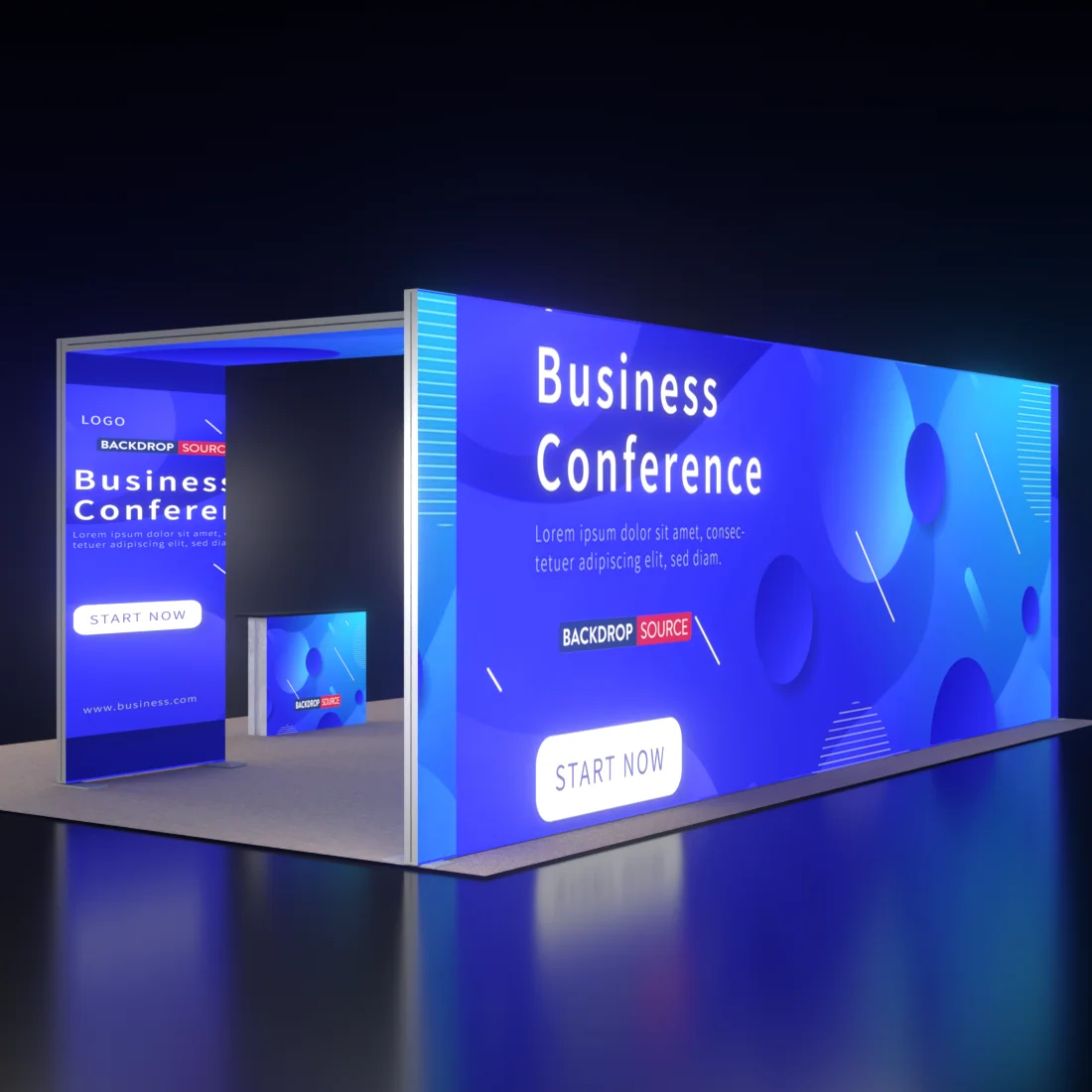

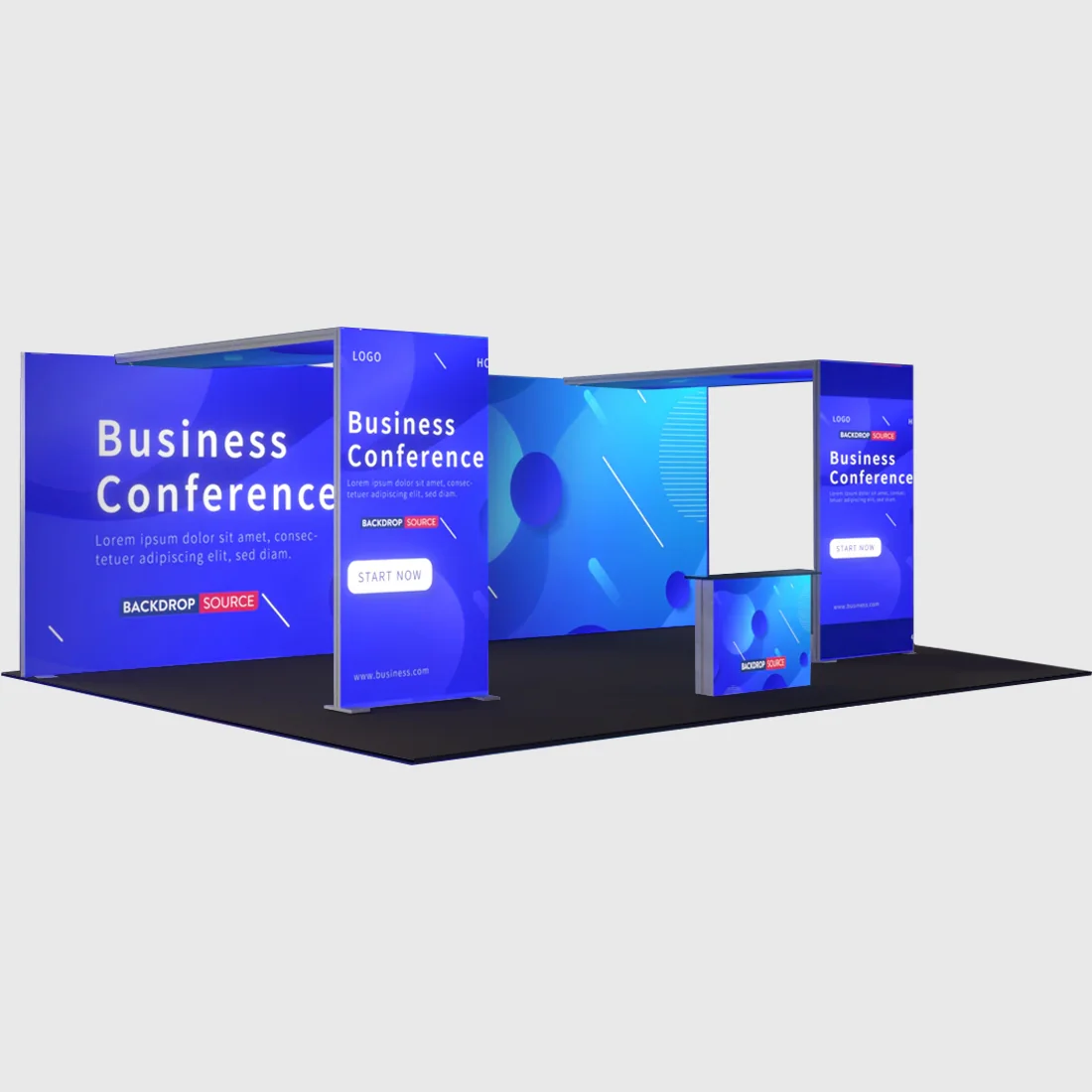

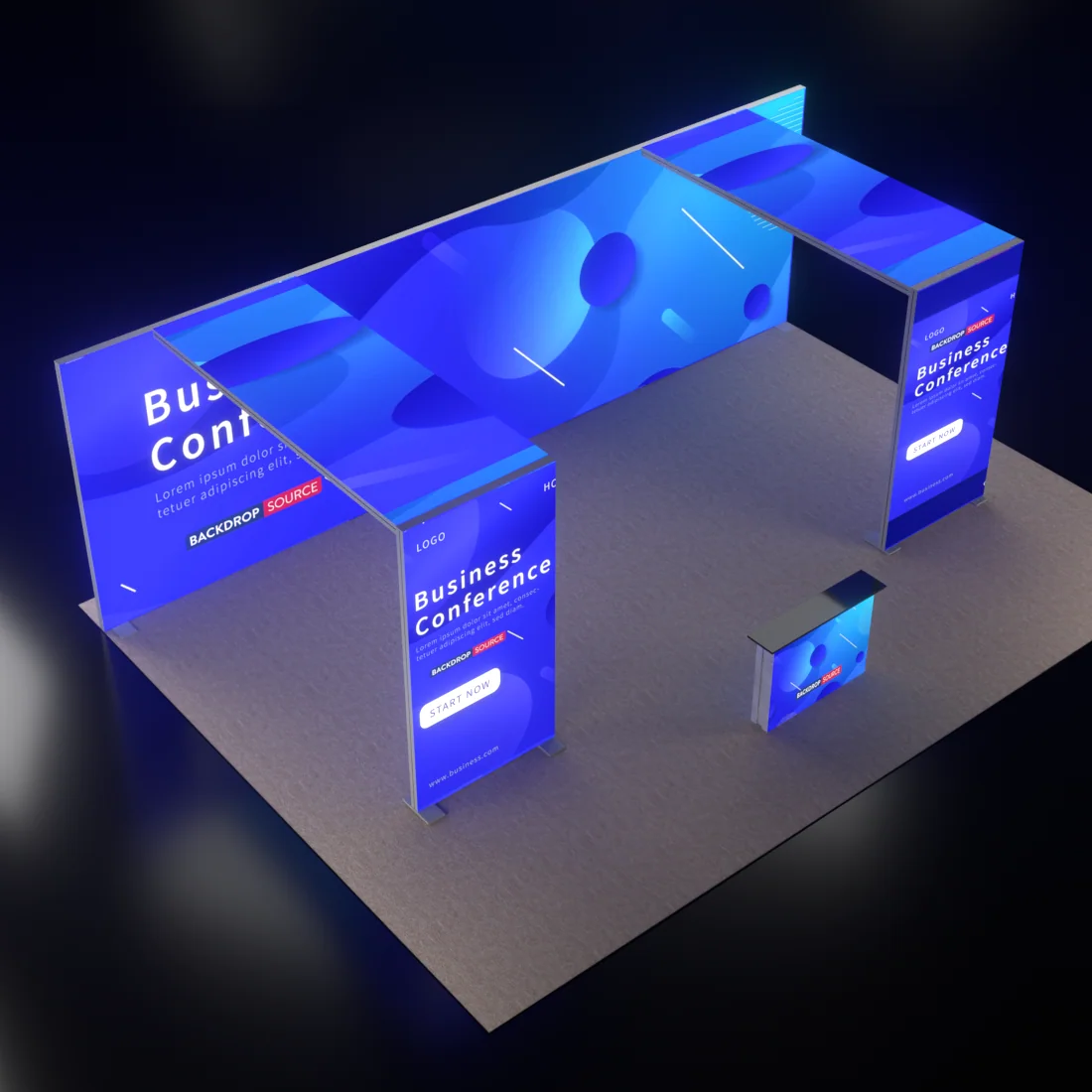

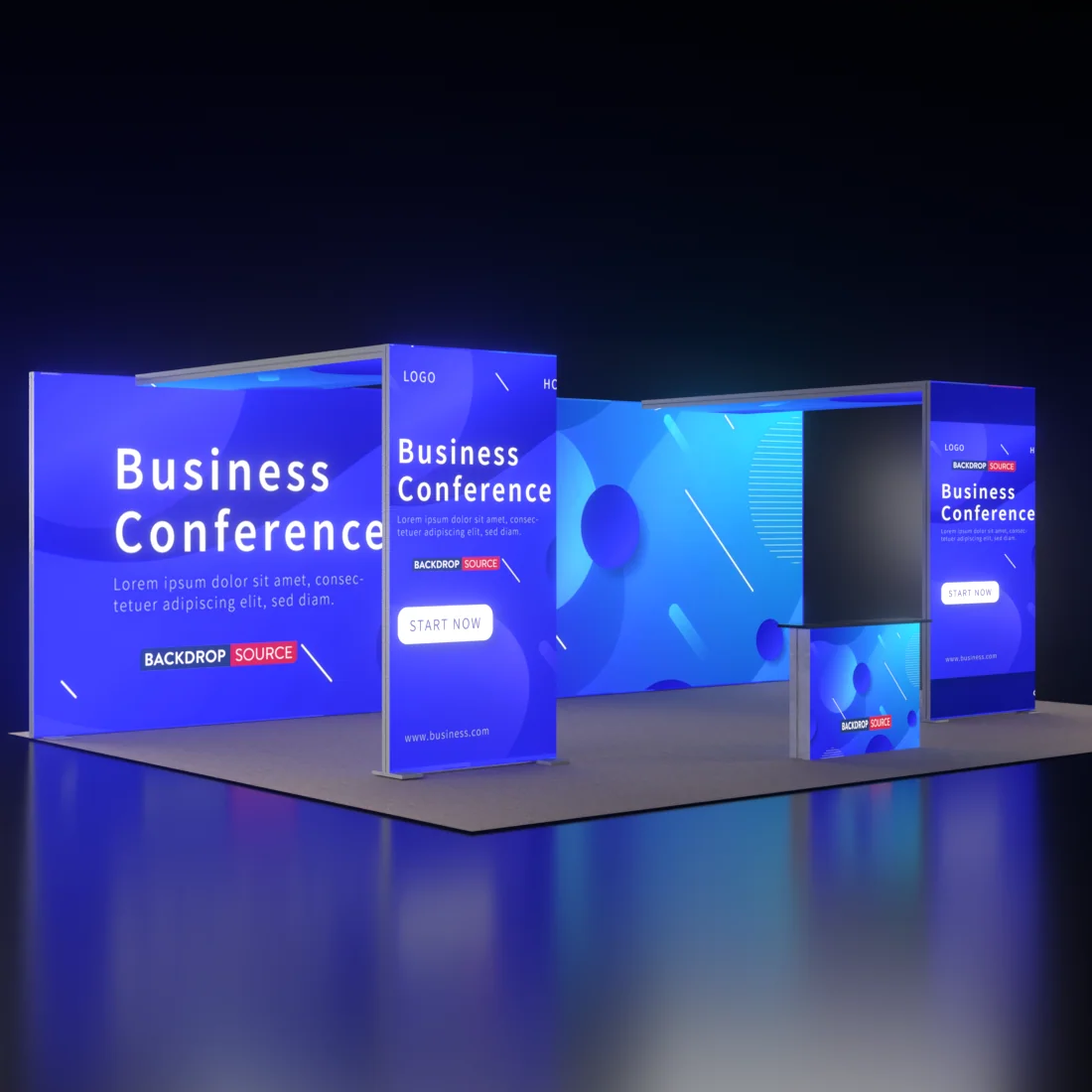

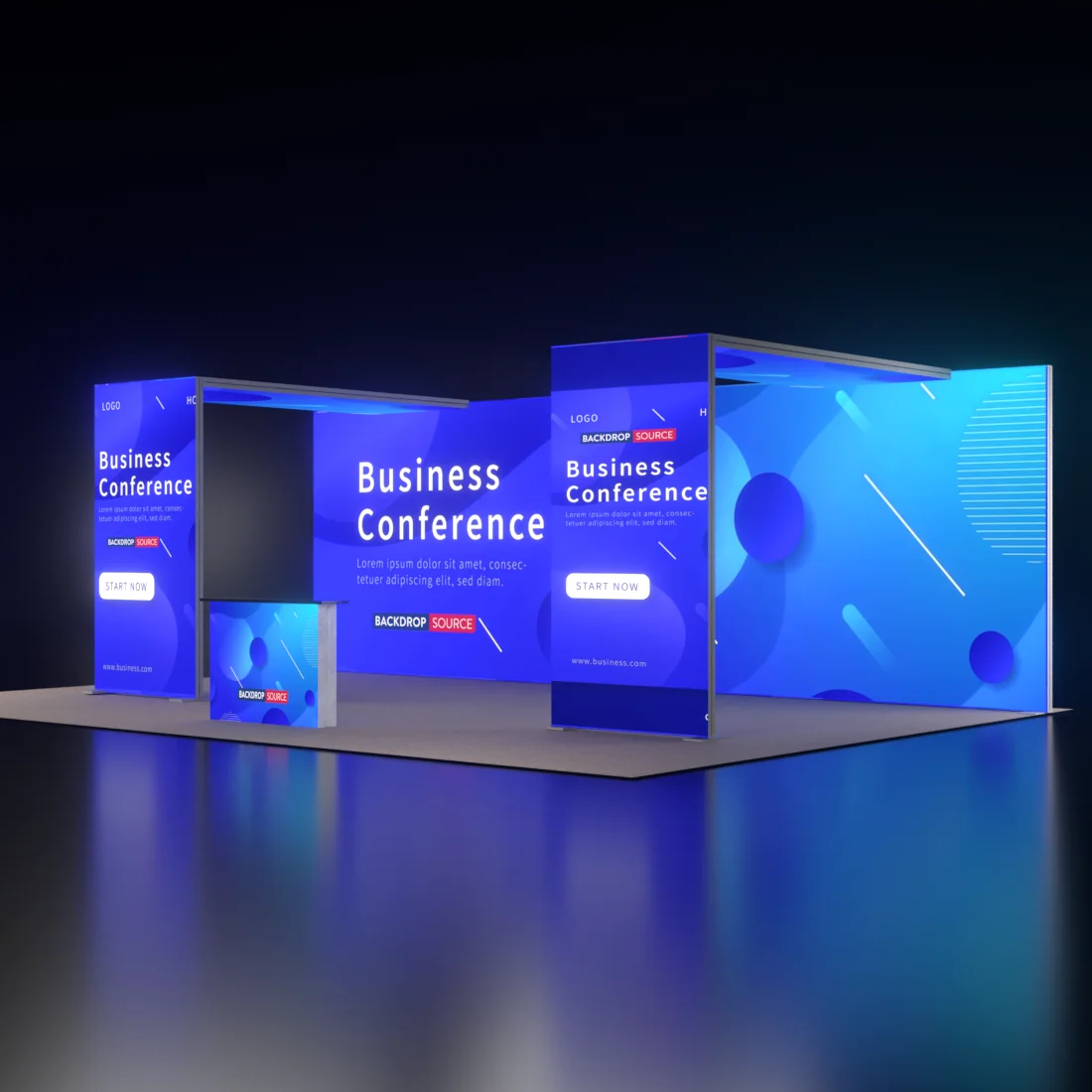

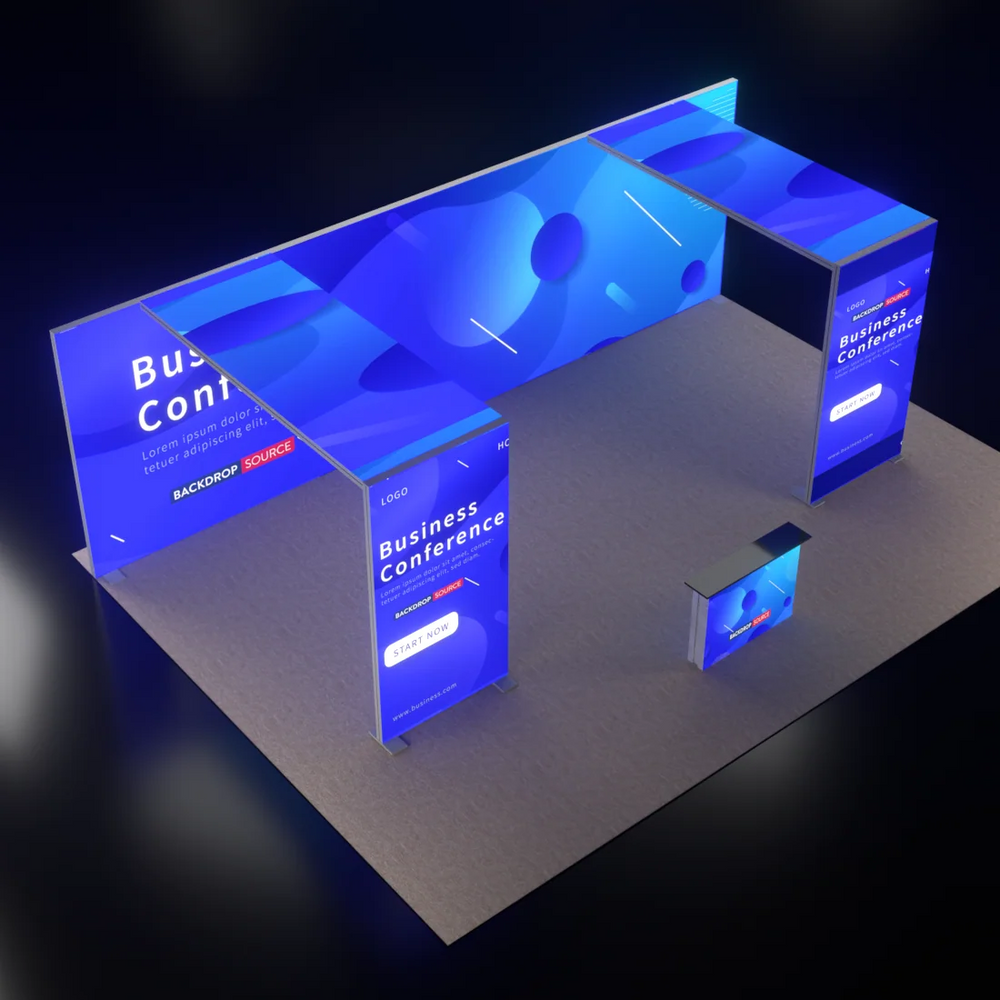

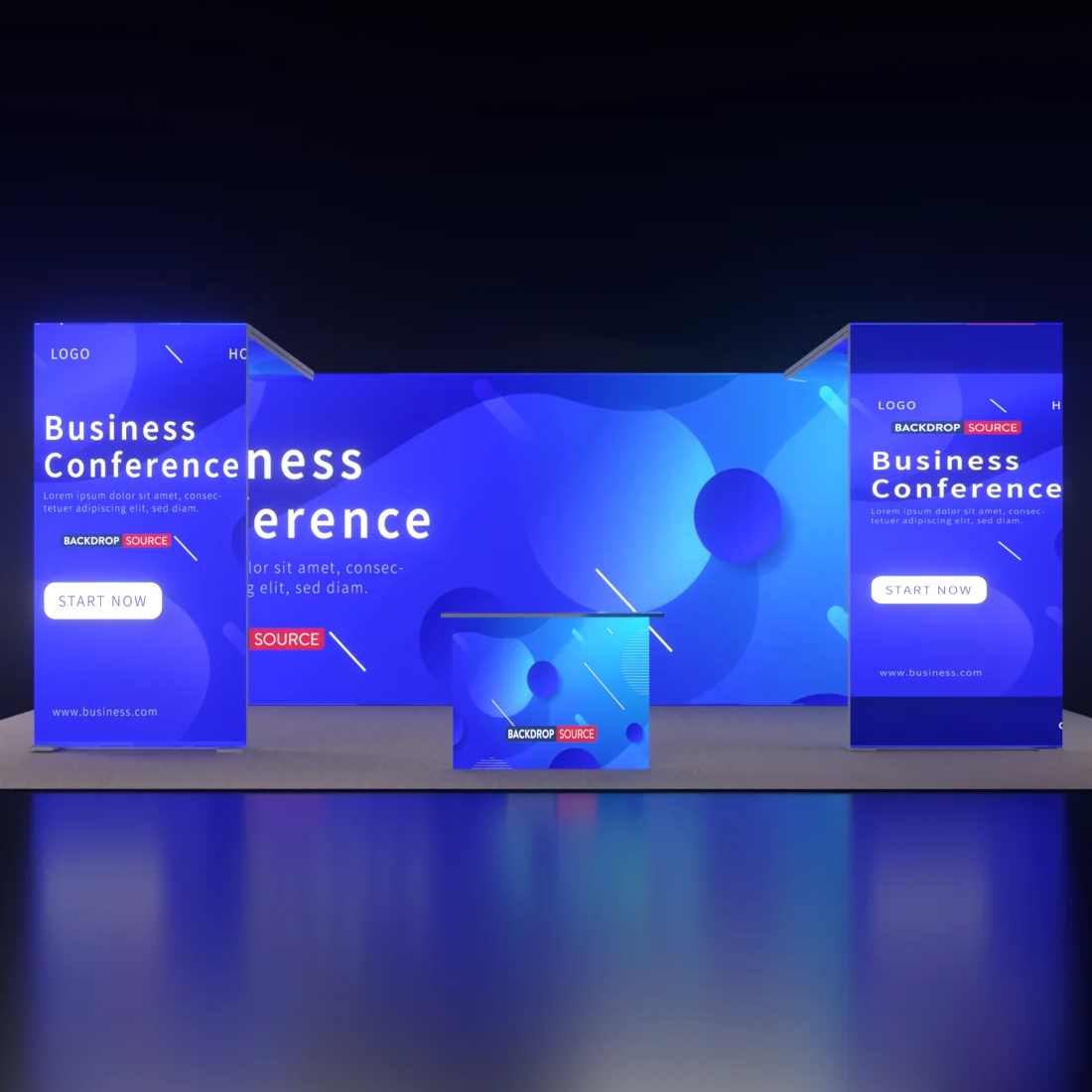

Backlit SEG Booth Kit with Twin L-Arches & Lightbox Counter
$6,607.00
How to order your backdrop
Upload Design
Upload your artwork or request design assistance before placing your order.
Review Proof
Complete checkout, receive a proof, and approve the final artwork.
Print & Deliver
We print your approved order and ship it directly to your doorstep.
Product Specs
SEG Modular Lightbox Display Kit - Model 9
The SEG Modular Lightbox Display Kit - Model 9 is a custom-printed display solution for trade shows, exhibitions, and branded events.
Silicone Edge Graphics (SEG)
Silicone Edge Graphics (SEG) for a clean, frameless appearance with edge-to-edge fabric display
Vibrant Dye-Sublimation Printed
Vibrant Dye-Sublimation Printed Fabric Graphics that are easily replaceable and wrinkle-resistant
Slim, Modern Aluminium Frame
Slim, Modern Aluminium Frame that's lightweight, durable, and visually seamless
Tool-Free Assembly for Quick
Tool-Free Assembly for quick setup and takedown
Key Features
- Modular Design allows for flexible configurations and easy expansion to suit various display needs
- Silicone Edge Graphics (SEG) for a clean, frameless appearance with edge-to-edge fabric display
- Vibrant Dye-Sublimation Printed Fabric Graphics that are easily replaceable and wrinkle-resistant
- Integrated LED Lighting for uniform backlighting that enhances visibility and impact
- Slim, Modern Aluminium Frame that's lightweight, durable, and visually seamless
- Tool-Free Assembly for quick setup and takedown
- Double- or Single-Sided Display Options for flexible presentation needs
- Wall-Mounted, Freestanding, or Hanging Configurations available
- Ideal for Trade Shows, Retail Spaces, Showrooms, and Exhibitions
Shipping & Installation
- Production Lead Time: 24 business hours after artwork approval
- Domestic Shipping: Delivered in 5–7 business days across Australia
- International Shipping: Available with customs-ready support
- Pickup Services: Not available — all items are shipped
- Installation: Optional professional setup available on request
- Assembly Video: Watch on YouTube
Product Dimensions
Product Specifications
- Frame Type : Modular aluminium SEG (Silicone Edge Graphics) profiles allowing customisable configurations
- Modularity : Components designed for easy assembly into various shapes and sizes to suit different display needs
- Graphics : High-resolution dye-sublimation printed fabric with silicone edges for a taut, wrinkle-free finish
- Lighting : Built-in energy-efficient LED edge lighting for bright, even illumination

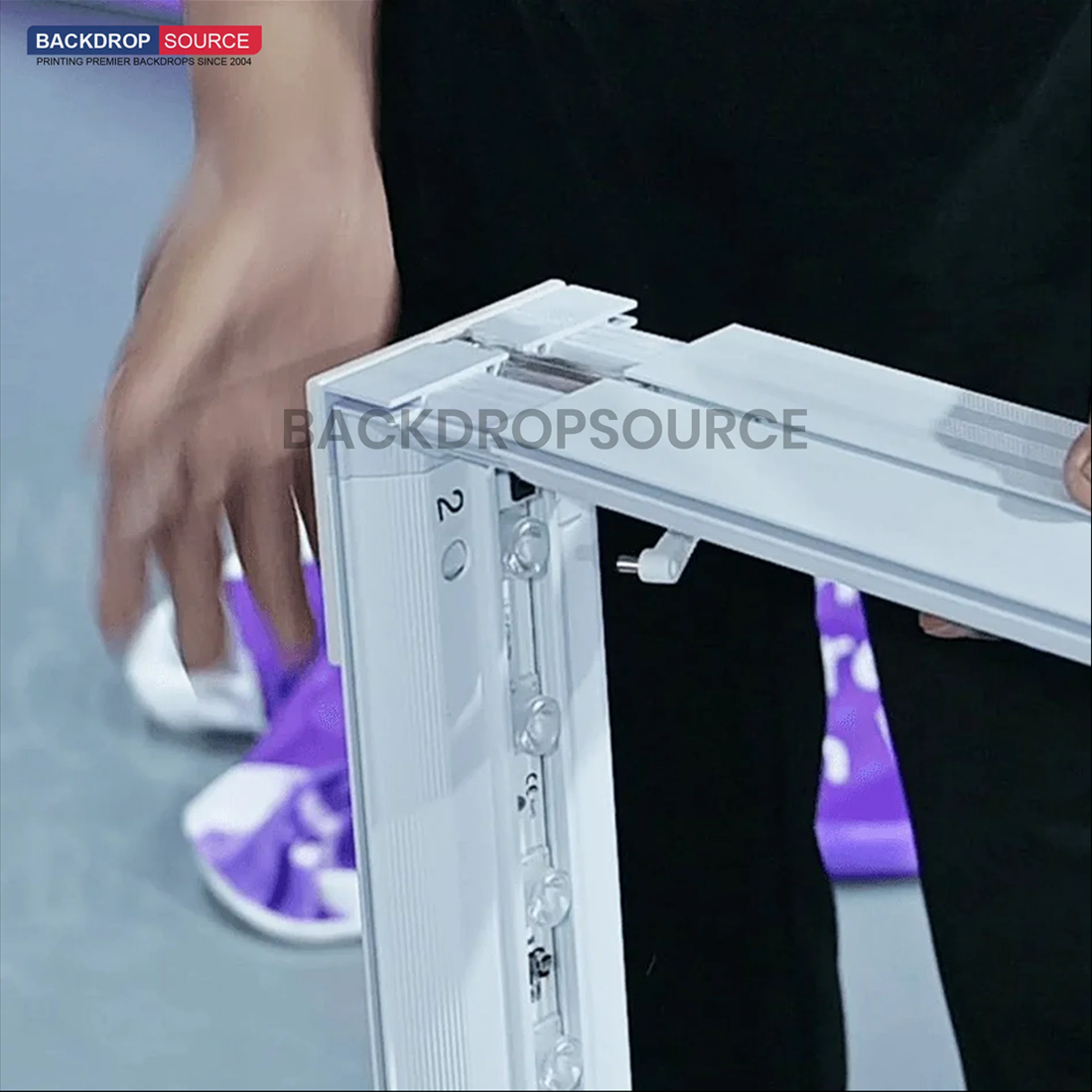

- Assembly : Tool-free, quick setup with push-fit frame connectors and easy graphic insertion
- Portability : Lightweight frame design with optional carry case for convenient transport
- Durability : Long-lasting LED lights with low power consumption and minimal heat output
- Application : Ideal for retail displays, trade shows, exhibitions, showrooms, and corporate interiors
| Size (W x H) | Backwall (W x H) | Archway (front) (W x H) * 2nos | Archway (top) (W x H) * 2nos | Counter (W x H) |
|---|---|---|---|---|
| 3.05m W x 2.01m H | 3.05m W x 2.01m H (304.8cm x 201.2cm) | 85.3cm W x 2.01m H (85.3cm x 201.2cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 100.6cm H (85.3cm x 100.6cm) |
| 3.05m W x 2.26m H | 3.05m W x 2.26m H (304.8cm x 225.6cm) | 85.3cm W x 2.26m H (85.3cm x 225.6cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 100.6cm H (85.3cm x 100.6cm) |
| 3.05m W x 2.50m H | 3.05m W x 2.50m H (304.8cm x 250.0cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 100.6cm H (85.3cm x 100.6cm) |
| 3.96m W x 2.01m H | 3.96m W x 2.01m H (396.2cm x 201.2cm) | 85.3cm W x 2.01m H (85.3cm x 201.2cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 100.6cm H (85.3cm x 100.6cm) |
| 3.96m W x 2.26m H | 3.96m W x 2.26m H (396.2cm x 225.6cm) | 85.3cm W x 2.26m H (85.3cm x 225.6cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 100.6cm H (85.3cm x 100.6cm) |
| 3.96m W x 2.50m H | 3.96m W x 2.50m H (396.2cm x 250.0cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 2.50m H (85.3cm x 250.0cm) | 85.3cm W x 100.6cm H (85.3cm x 100.6cm) |
| 5.00m W x 2.01m H | 5.00m W x 2.01m H (499.9cm x 201.2cm) | 100.6cm W x 2.01m H (100.6cm x 201.2cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 100.6cm H (100.6cm x 100.6cm) |
| 5.00m W x 2.26m H | 5.00m W x 2.26m H (499.9cm x 225.6cm) | 100.6cm W x 2.26m H (100.6cm x 225.6cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 100.6cm H (100.6cm x 100.6cm) |
| 5.00m W x 2.50m H | 5.00m W x 2.50m H (499.9cm x 250.0cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 100.6cm H (100.6cm x 100.6cm) |
| 6.10m W x 2.01m H | 6.10m W x 2.01m H (609.6cm x 201.2cm) | 100.6cm W x 2.01m H (100.6cm x 201.2cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 100.6cm H (100.6cm x 100.6cm) |
| 6.10m W x 2.26m H | 6.10m W x 2.26m H (609.6cm x 225.6cm) | 100.6cm W x 2.26m H (100.6cm x 225.6cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 100.6cm H (100.6cm x 100.6cm) |
| 6.10m W x 2.50m H | 6.10m W x 2.50m H (609.6cm x 250.0cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 2.50m H (100.6cm x 250.0cm) | 100.6cm W x 100.6cm H (100.6cm x 100.6cm) |
What's included
- 1 x SEG Lightbox - Backwall
- 2 x SEG L Arch (front & top)
- 1 x SEG Counter

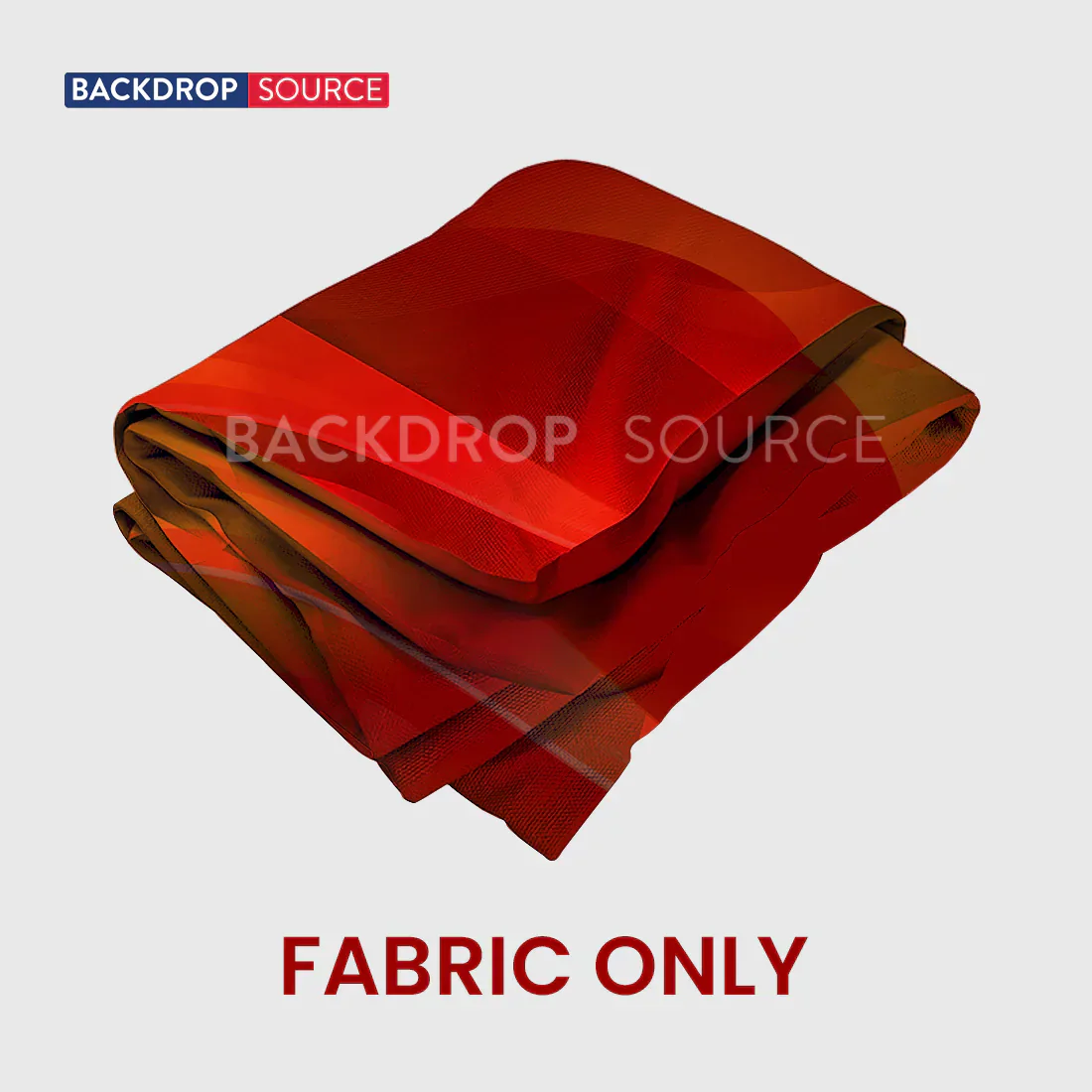

- 12 x Silicone edge graphics (custom printed)
- LED wire connector
- Transformer power cord
- Power Supply
- Support pole (for freestanding setups)

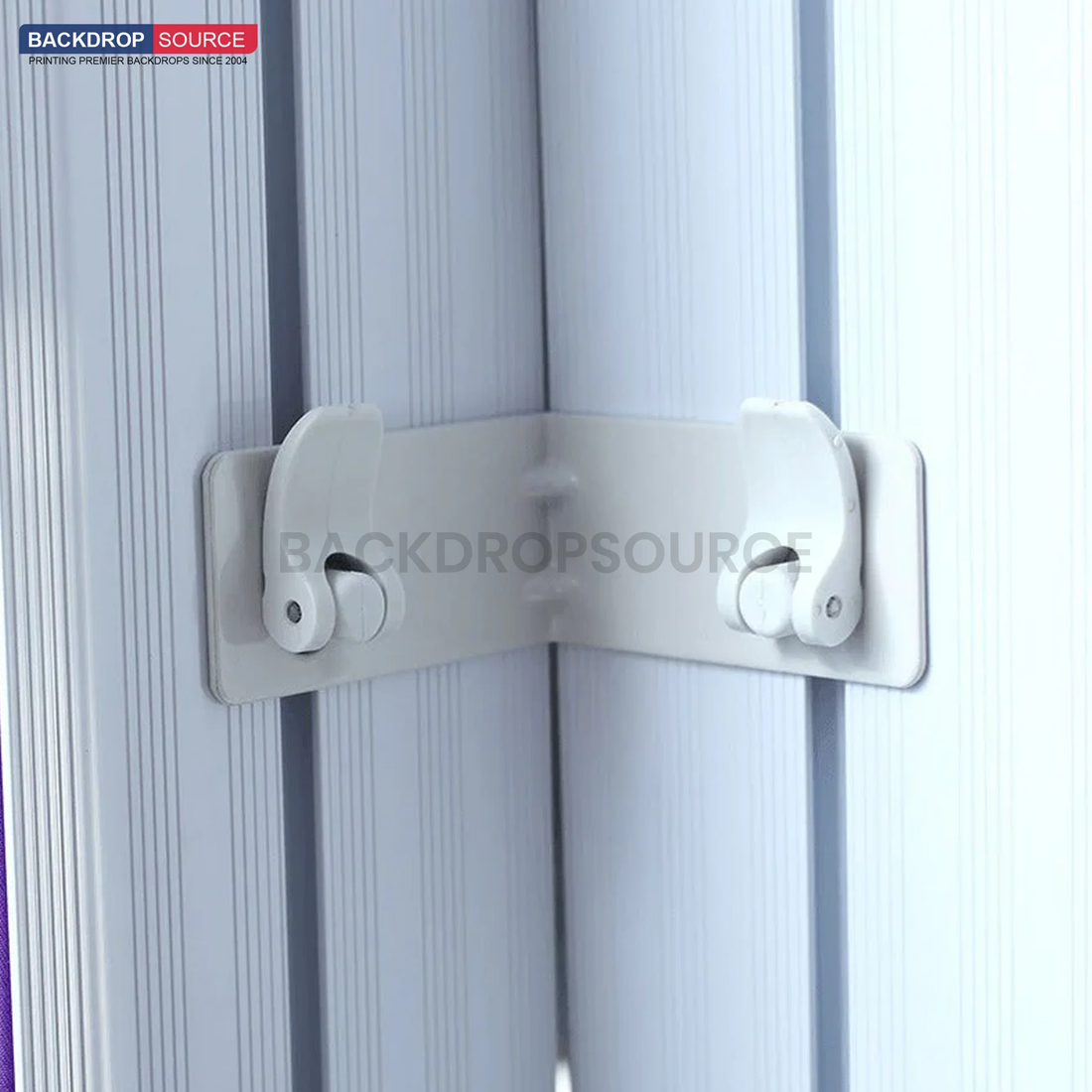

- Set of connecting clips
- Soft nylon carry bag
- Power Cord - Universal AC Power Cord
- Colour : Black
- Length : 152.4cm
- Amps : 10A
- Volts : 125V
- Certification : UL listed
- Transformer Power Cord : (certified)

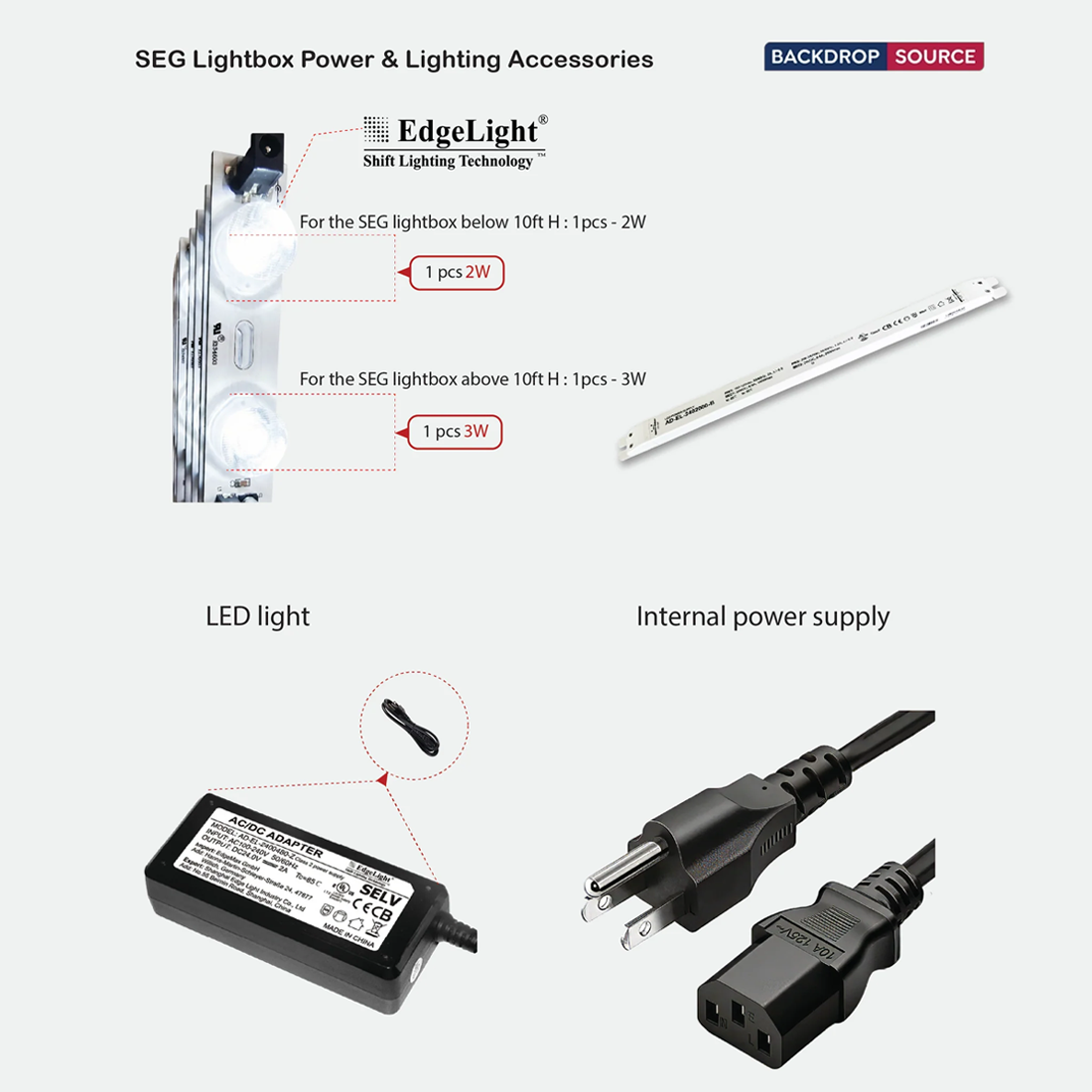

- Black external power supply (for 7.97cm Depth media walls)
- 36W power with an output of 12V DC (constant voltage).
- White internal power supply (for 11.94cm Depth media walls)
- 160W power with an output of 24V
- LED Bulbs:
- For media walls below 3.05m wide → each bulb is 2W
- For media walls above 3.05m wide → each bulb is 3W
Display Options
This lightbox kit supports several configuration types, giving buyers flexibility in how they mount, orient, and present their graphics.
| Product Category | Description | Best For |
|---|---|---|
| SEG Backlit Single-Sided Display | A modular aluminium SEG frame with integrated LED edge lighting on one face, using dye-sublimation printed fabric with silicone edges for a taut, frameless finish. Graphics insert into the frame channel and can be swapped without tools. | Trade show booths and retail walls where one viewing side is needed |
| SEG Backlit Double-Sided Display | Constructed with the same modular aluminium SEG profile and LED backlighting, but configured to display fabric graphics on both faces. Suited for freestanding or hanging placements where audiences approach from multiple directions. | Hanging installations and freestanding displays in open floor environments |
| Wall-Mounted SEG Lightbox | A fixed-mount configuration using the modular aluminium frame secured directly to a wall surface. Features the same silicone edge fabric system and LED illumination, with a slim profile that sits flush against the wall. | Permanent showroom, corporate interior, and retail wall branding |
| Freestanding SEG Lightbox | A floor-standing configuration assembled from the modular aluminium components with a base support structure. Uses the same push-fit connectors and SEG fabric graphics, making it portable and reconfigurable for different venue layouts. | Exhibition floors and event spaces requiring standalone display units |
| Hanging SEG Lightbox | Suspended from overhead rigging points using the modular aluminium frame, this configuration provides overhead visibility from multiple angles. Fabric graphics are installed using the same silicone edge channel system. | Large trade show halls and venues where floor space is limited |
Artwork and file setup
We accept your artwork through WeTransfer, Dropbox, Google Drive, Email, or directly via the Upload Artwork button above. Should you not yet have a design prepared, our in-house creative team is ready to assist — we'll develop a professionally crafted layout for this product that brings your brand vision to life.
To give you full confidence before production begins, we also offer a FREE 2D mockup preview. Simply click the "Request Free 2D Mockup Image" button at the top of the page and share your content or files with us. We'll give you a realistic preview of exactly how your backdrop will appear once printed.
| Category | Specification |
|---|---|
| Accepted Formats | AI, PSD, PDF (high resolution preferred) |
| Resolution | Minimum 150 DPI at full size |
| Bleed | 2.54cm on all sides (keep text/logos away from edges) |
| Colour Mode | CMYK for optimal print accuracy |
| Fonts | Outline all fonts or attach font files |
